The Neptune Systems Apex A3 offers the control but scaled back monitoring with room to grow for the everyday aquarist.

A3 Apex base unit

3 FMM Ports
6 Switch Digital Input
2 Aquabus Ports
1 pH/ORP* probe port
1 Temperature probe port
Both WiFi & Ethernet compatible
New built-in audible alarm
Expandable

Track temperature and pH with included lab-grade, double-junction probes
Monitor water level with new MOS Magnetic Optical Sensor
Stay on top of leaks with LD-2 Leak Detection Floor Sensor
Set reminders, log testing and dosing information, and access your tank from anywhere with Apex Fusion

THE APEX ECOSPHERE-- LESS HASSLE, MORE SUCCESS

Built in WiFi, key parameter monitoring, and reliable equipment control. Prevent catastrophes, take corrective actions, and receive alerts to your smart phone when things go awry. Set reminders, log testing and dosing information, and keep tabs on your aquarium from anywhere in the world. All this and more is possible with the Neptune Apex Controller System! The Apex's included WiFi allows you to connect to the free Fusion Cloud interface, where you can do everything from calibrating probes to customizing outlets with just a few taps. Fusion also gives you the ability to monitor and control your Apex from anywhere and on nearly every device platform – computer, tablet, or smart phone – Windows, OSX, iOS, or Android.

The Fusion interface has a user-friendly design sure to create a headache-free command center for all your aquarium automation needs. Its drag and drop interface allows you to toggle control switches, graphs, video tiles and more to your dashboard, allowing for easy customization that is focused on your individual monitoring needs. Being that the Fusion is a web-based application, you will never have to endure the rigmarole of endless app updates, clumsy touch screens, or complicated drivers to install. Whenever you open the interface, you are always running the most current version of the software. Set up and configuration is streamlined with an easy-to-follow guided user interface.

A3 Apex Base Unit
The A3 Apex is a great entry into gaining full control over your tank, giving you everything you need to get up and running at an affordable price. Monitor temperature, pH, surface leaks, and water level with the ability to control additional aquarium equipment with the included EB632. The A3 Series Apex base unit includes a built-in audible alarm and three FMM ports for connecting all fluid monitoring sensors, an upgrade from the A2 Series which required a separate module purchase.

ENERGY BAR 632 – THE ULTIMATE POWER CONTROL HUB - (The UK outlet variation found in United Kingdom, Singapore, and other countries around the world)

When Neptune decided to create an Energy Bar for this new Apex, they've designed it from the ground up. Not only does the Energy Bar 632 have six 220V AC outlets, but it includes an internal 100W 24VDC power supply as well. That power supply feeds three built-in 1LINK ports as well as two 24VDC accessory ports.

And, each individual outlet has independent power monitoring and there are individual LED indicators for each outlet.

CERTIFIED TO CE STANDARDS - Your safety is important to Neptune Systems. This is why we design every product to established safety standards. In the case of the Energy Bar 632, and given it is a line-voltage device, we have taken that a step further and confirmed it meets CE Safety Standards.

POWER MONITORING - For years we have been asked to provide power monitoring of the individual devices connected to each outlet – but it just wasn’t possible without pricing the product out of the range of most consumers. Now it’s here and with comes tons of benefits. With this power information regularly monitored, you now know when your pump, skimmer, powerhead, UV, or any other device is not operating normally and an alert message can be sent. This enables you to catch issues right when they happen – or better yet when they are on the road to failure. Also, for many of us the cost of the electricity to run a successful aquarium is a major concern in our household. Even for those where electricity is cheap, we believe most aquarists care a great deal about their energy consumption and its effect on the environment. Ironically, our energy usage could be directly connected to excess greenhouse gasses, the warming of the oceans, and the bleaching of the corals! However, armed with this power usage information, we believe aquarists will not only be able to make operating and purchase decisions that will save them hundreds of dollars a year, but they will also be able to reduce their carbon footprint.

BUILT-IN 1LINK AND 24VDC PORTS - This Energy Bar has a built-in 100W, 24VDC power supply that can control up to three Neptune Systems 1LINK products like the WAV and DOS. It also includes two switchable 24V DC on/off outlets that are compatible with any 24V device under 30W and Neptune Systems 24V accessories like our Practical Multi-purpose Utility Pump (PMUP) and solenoid valve.

INDIVIDUAL OUTLET INDICATOR LED - Each Energy Bar AC outlet as well as the two 24VDC accessory ports have their own status LED. This LED tells you when that outlet is energized. The LED will also blink rapidly if a device is plugged in that exceeds the current capability for that outlet.

ALARMS AND DECISIONS BASED ON POWER - Since the Apex is receiving continual power usage data from the Energy Bar 632, it can be configured to send you notifications when a device is not using power as it should be. An example would be a return pump showing no power consumption when the outlet is on. Or, tell you when a skimmer has a clogged airline because power consumption will show differently than normal operation. These high and low limits are completed customizable by individual outlet. You can even use this power data to control other devices.

ALL OUTLETS RELAY SWITCHED - Times have changed and it is fairly uncommon now for aquariums to have AC devices that must be cycled on and off continuously. This means that we could now switch all AC outlets to relay switching.

MOS Magnetic Optical Sensor

The Neptune MOS replaces the previous OS-1-M and features an updated design that fits into tighter spaces and helps to prevent water incursion into the sensor. The MOS plugs into an Apex FMM port and, using reflected infrared light, will signal your Apex when it changes state from being wet to dry or dry to wet. This sensor can be used for constructing your own ATO (auto-top-off), as a high-level warning sensor in your sump, water storage level sensor, and much more. The sensors can be mounted on any type of reservoir that has up to 1/4" thick walls.

LD-2 Surface Leak Detection Sensor
Neptune's LD-2 is a full sized leak detection probe perfect for inside your stand, on hard floors, on top of skimmer cups, or any other flat surface where an overflow may cause issues. If water ever touches the sensor, your Apex Controller will be instantly notified so you can take corrective action and avoid disaster.

Lab Grade, Double Junction Probes
The Apex system includes high-quality probes for monitoring your tank's temperature and pH. Calibration is a quick and simple process via the app dashboard, which will automatically recognize when your readings have stabilized and letting you know when to move to the next step-- no more guesswork and reading RAW data. In addition, the double junction pH probe will allow your readings to stay more stable without the need to calibrate as often.

Backwards Compatible and Easily Expandable
If you have any old modules, head units, energy bars, or other Apex accessories they will work flawlessly with the new Apex Controller. Want to add Salinity monitoring? Just connect a PM2 module. Need Dissolved O2 monitoring? Simply add a PM3. The Neptune Systems Apex is expandable and compatible, making it the ultimate reef tank aquarium controller.

A3 Apex Bundle Includes:

1x A3 Apex Base Unit
1x EB632 Energy Bar 632
1x Temperature Probe
1x pH Probe
1x MOS Magnetic Optical Sensor
1x LD-2 Leak Detection Sensor
1x 6' Aquabus Cable
Calibration Solutions (7 & 10)
Mounting Screws
Getting Started Card

Marine Dosing & Testing

P1 Pro Dosing Pump

D-D H2Ocean P4 PRO Dosing Pump

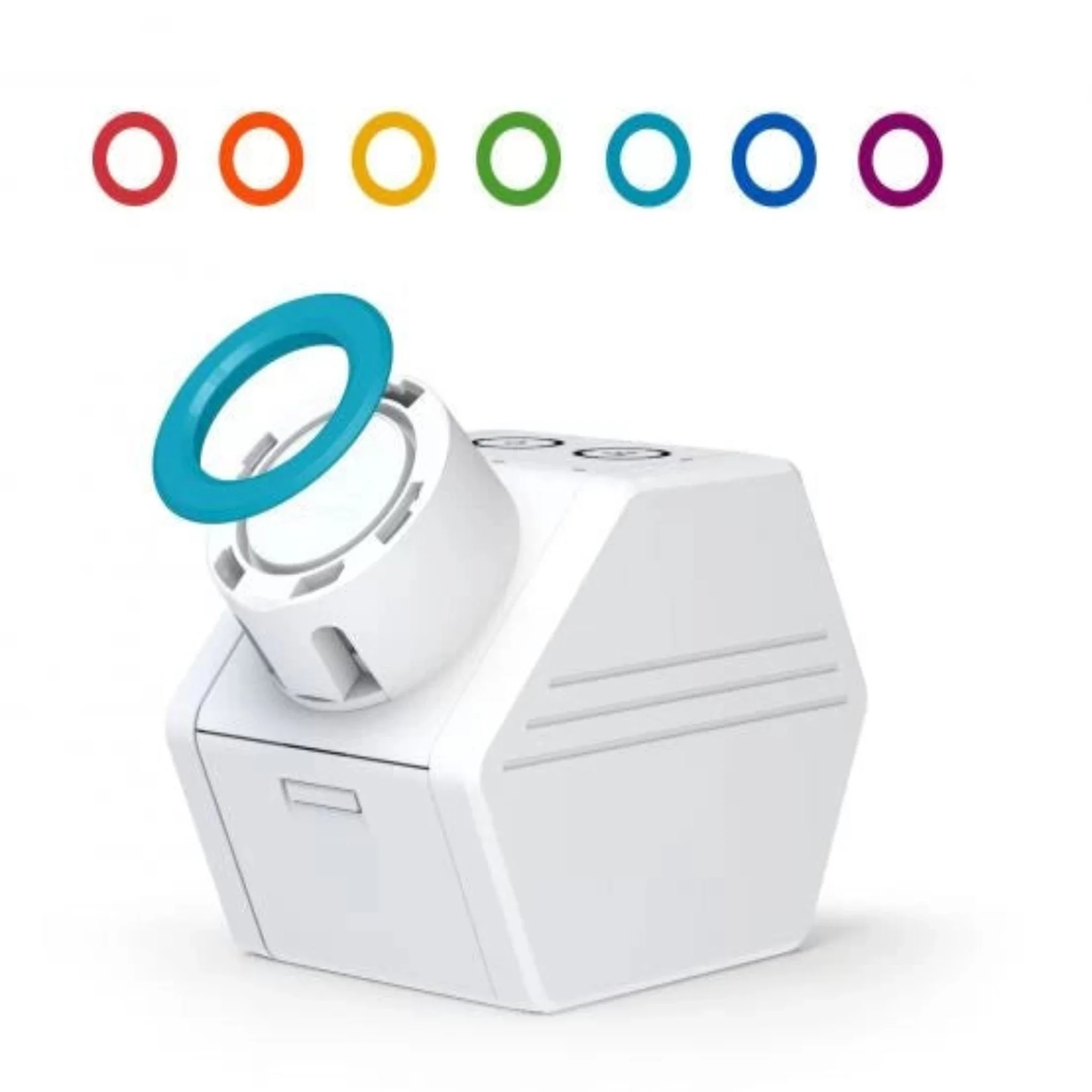

Aquavitro Sentia Doser - Primary

Aquavitro Sentia Doser - Secondary

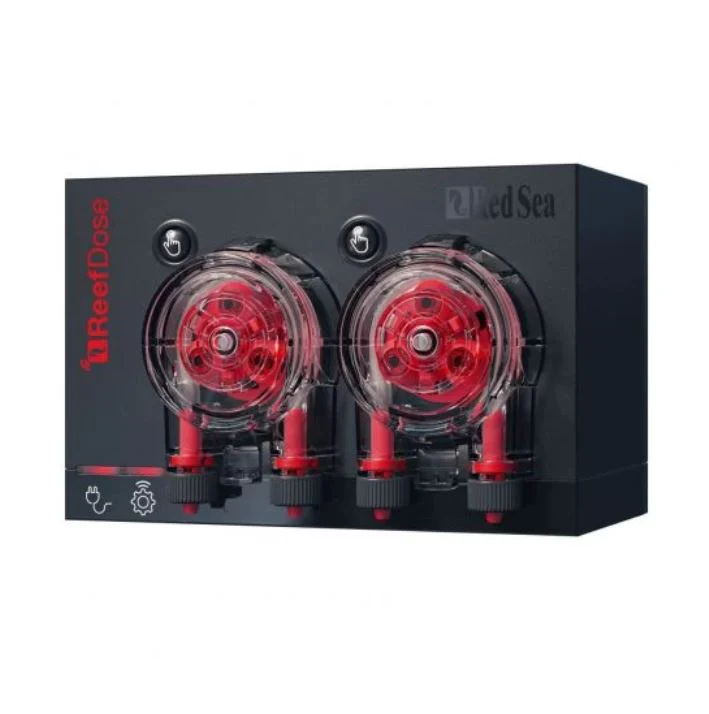

Red Sea ReefDose 2 Doser

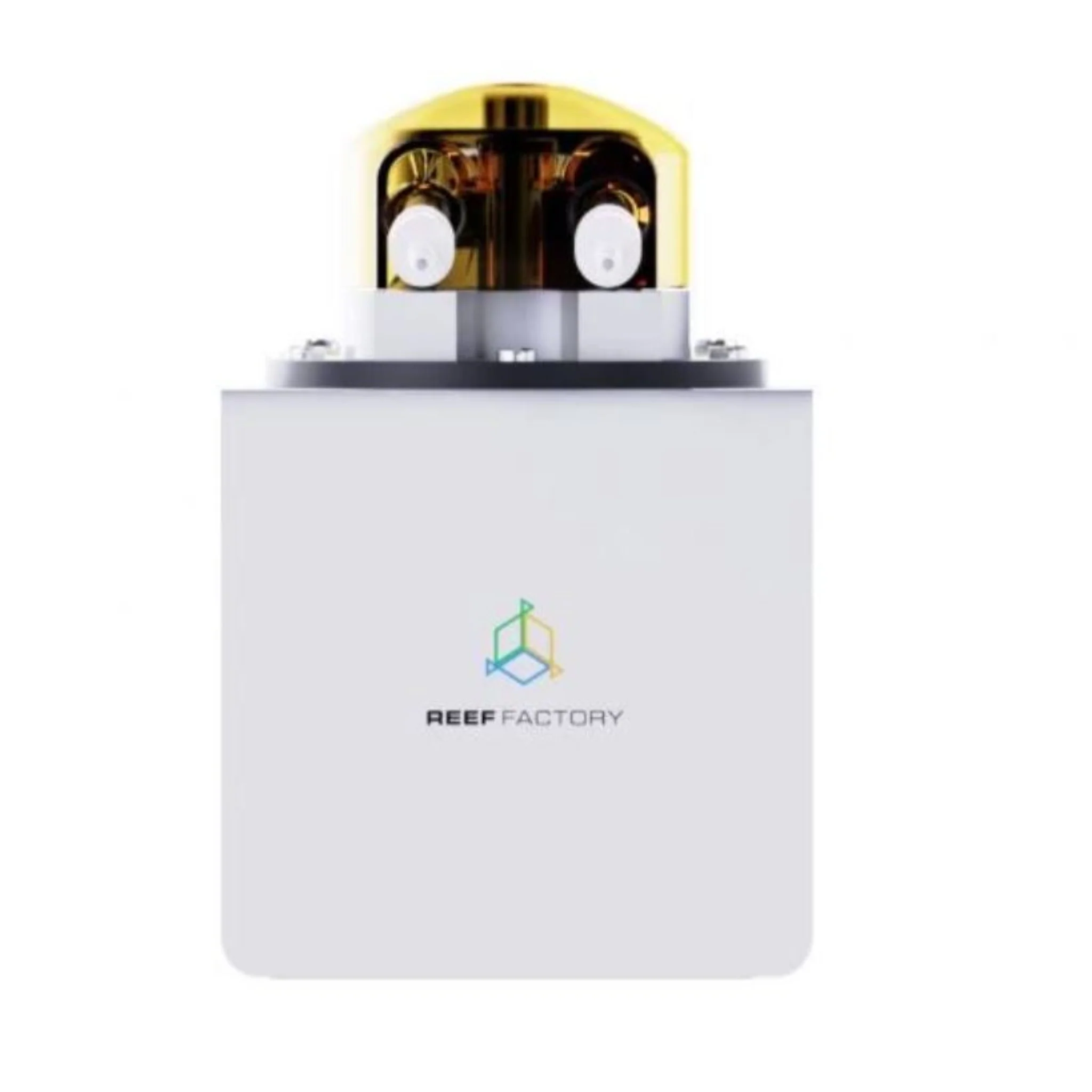

Reef Factory Dosing Pump Pro

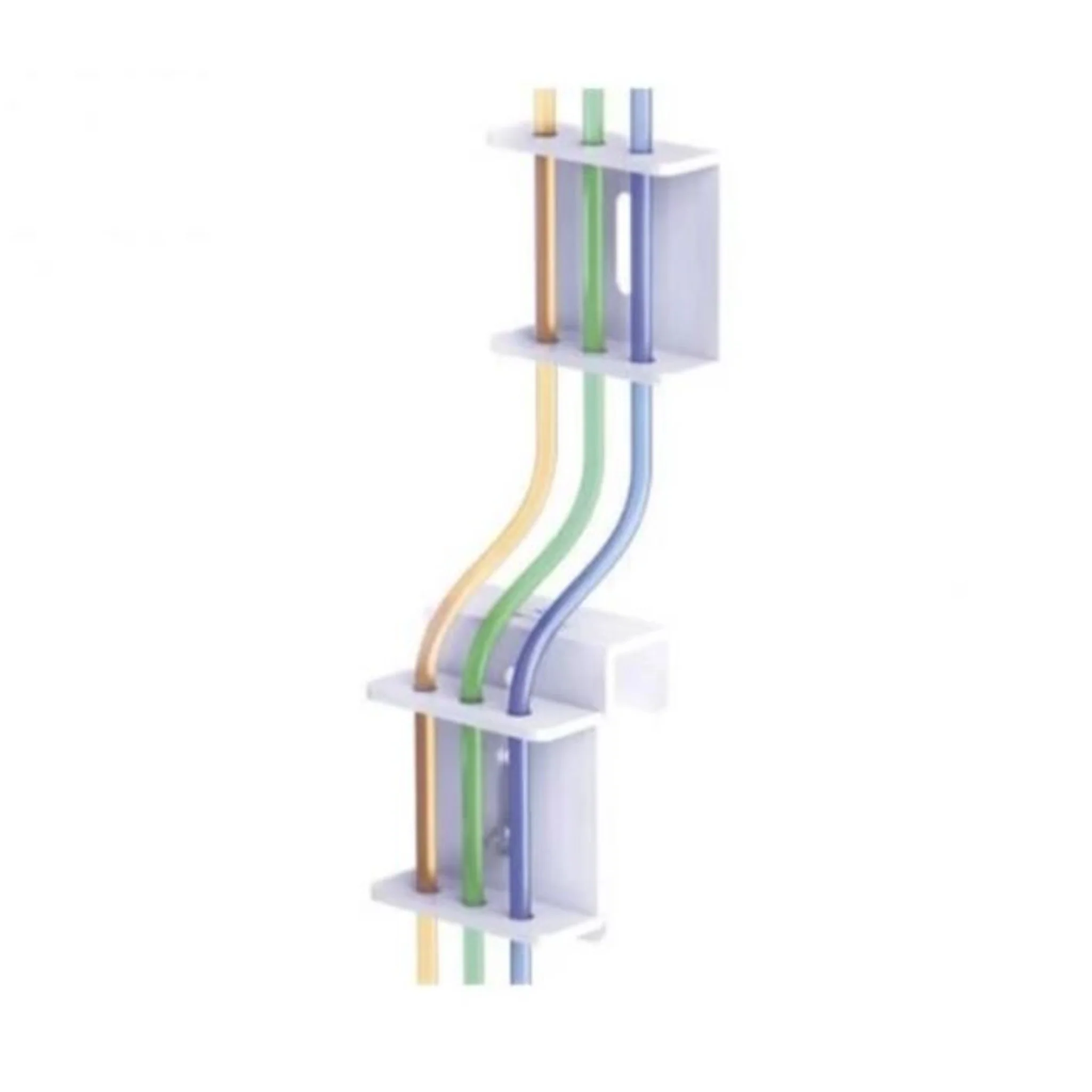

Reef Factory Dosing Pump Accessory Kit

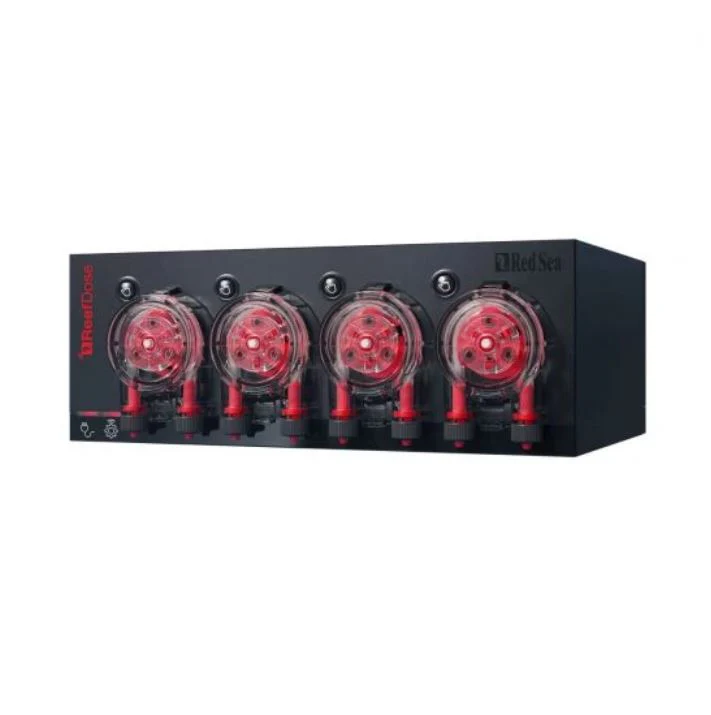

Red Sea ReefDose 4 Doser

Red Sea ReefDose Accessories Kit (Red/Yellow)

Red Sea ReefDose Accessories Kit (Blue/Green)

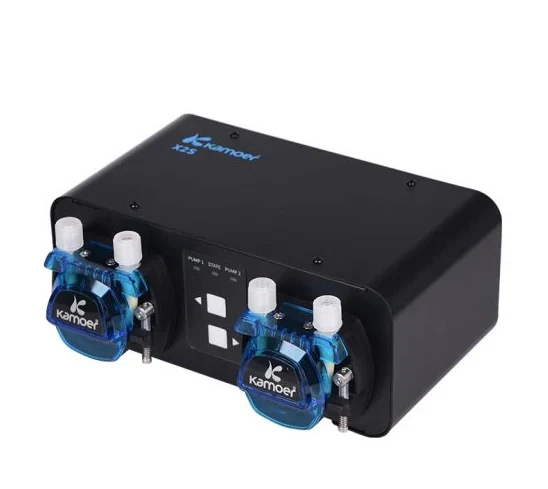

Kamoer X2S Water Change Pump
